Product Overview
Enhance your storage or organizational needs with this modular industrial pipe rack system. It offers a durable and customizable solution, perfect for creating a functional and industrial – style setup. The system is designed for easy assembly and disassembly, allowing you to adapt it to your specific requirements.
Key Features
- Material: Dark gray/black steel, likely galvanized or black – iron
- Textures: Main body has a slightly rough, granular texture; threaded ends are smooth and grooved
- Design: Functional, minimalistic, and industrial with rectangular frames and threaded pipe joints
- Key Components: Threaded steel nipples, vertical posts, horizontal crossbars, and interlocking joints
- Quality: Solid steel with precision – machined threads, high – quality manufacturing
Specifications
| Attribute | Details |
| Length | 27″, 34″, 38″, 42″ |

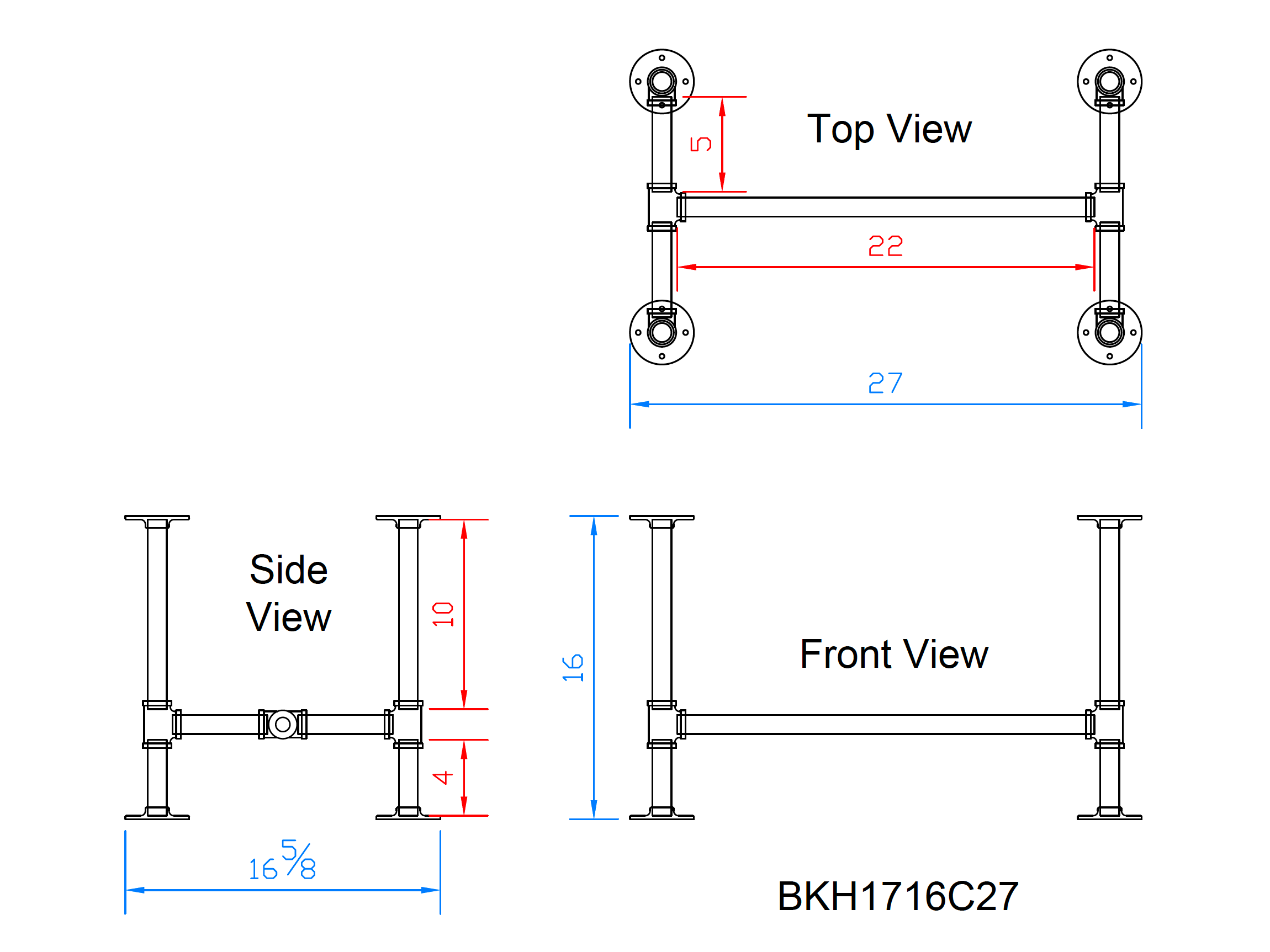

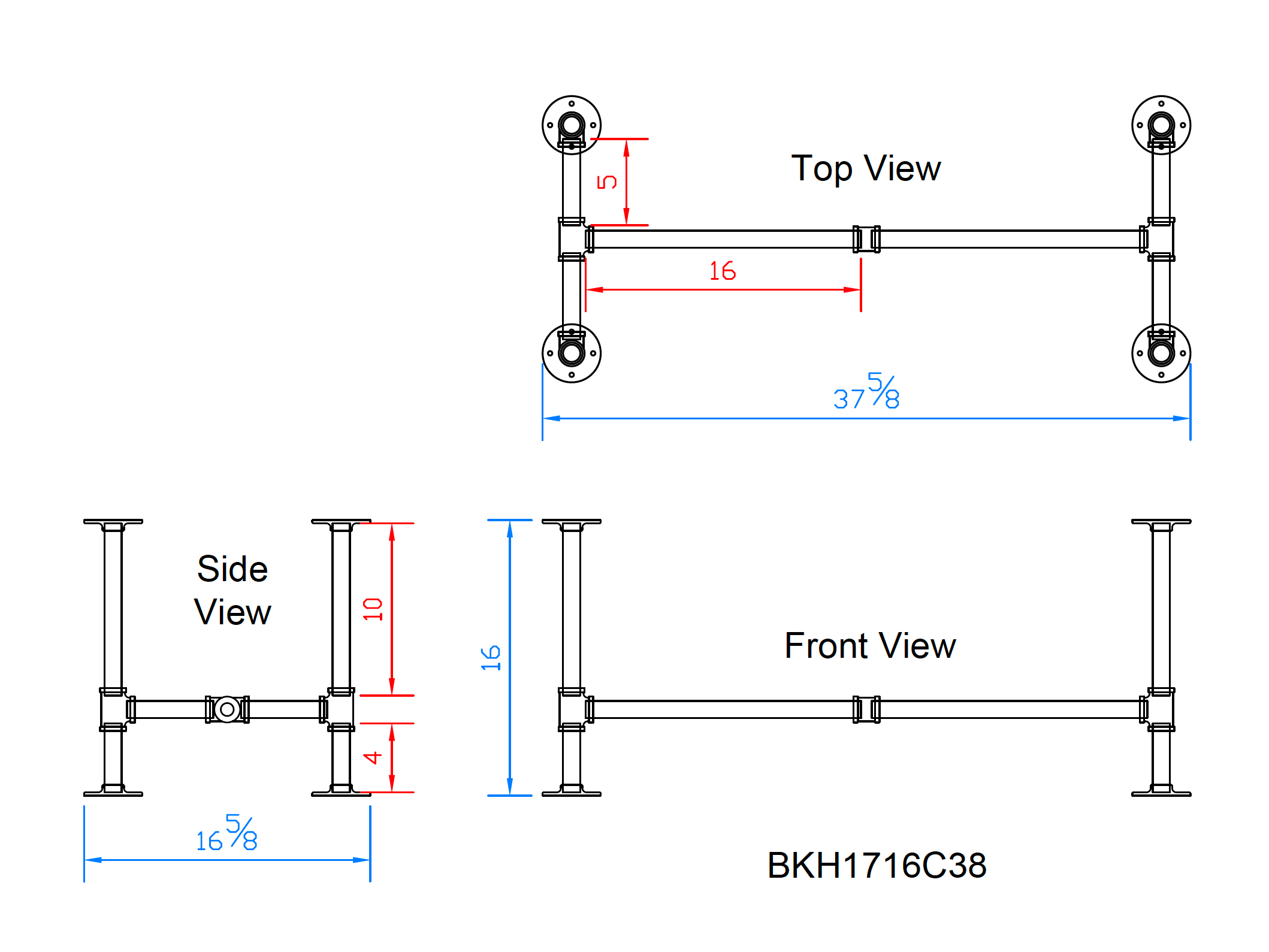

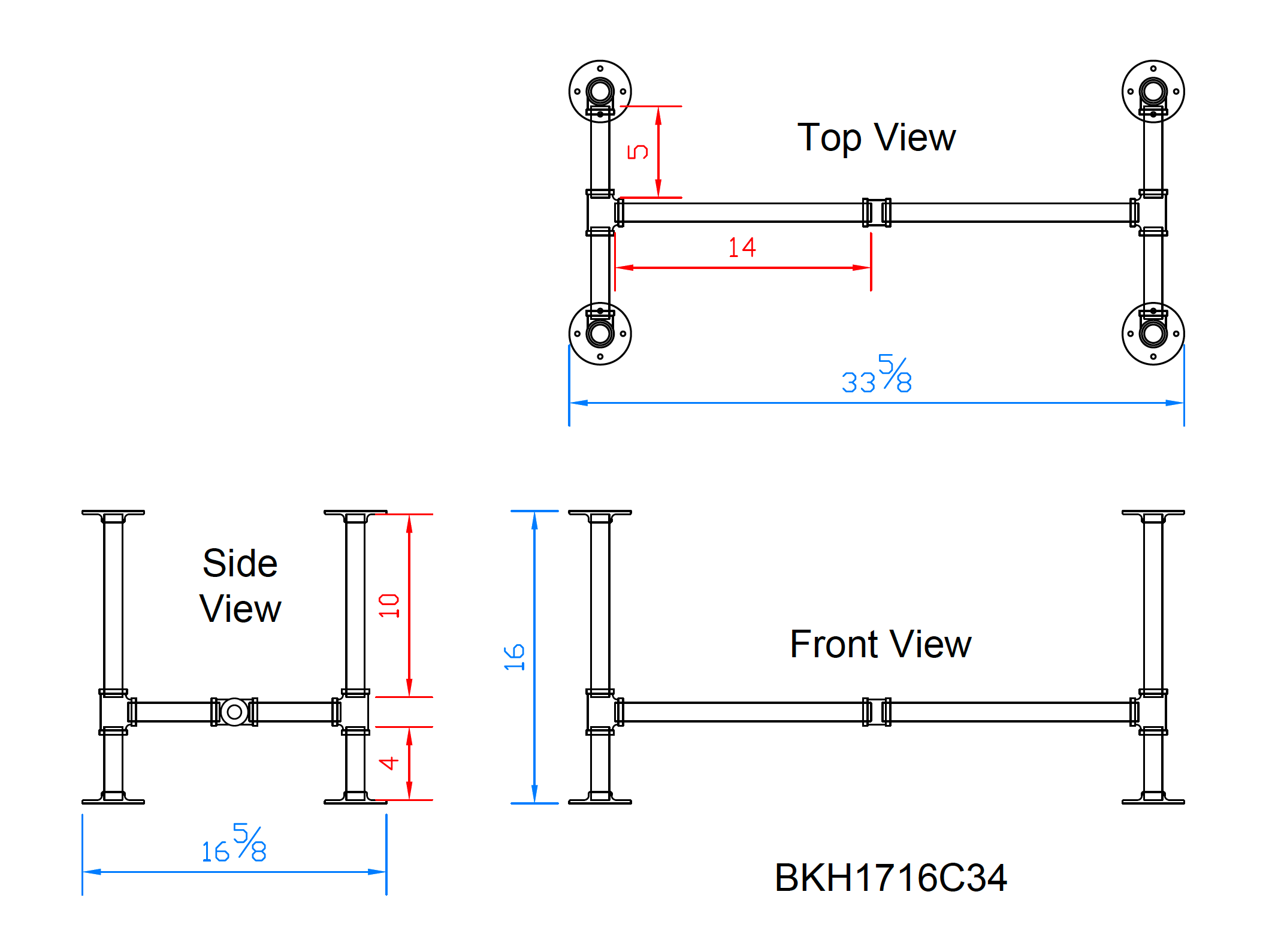

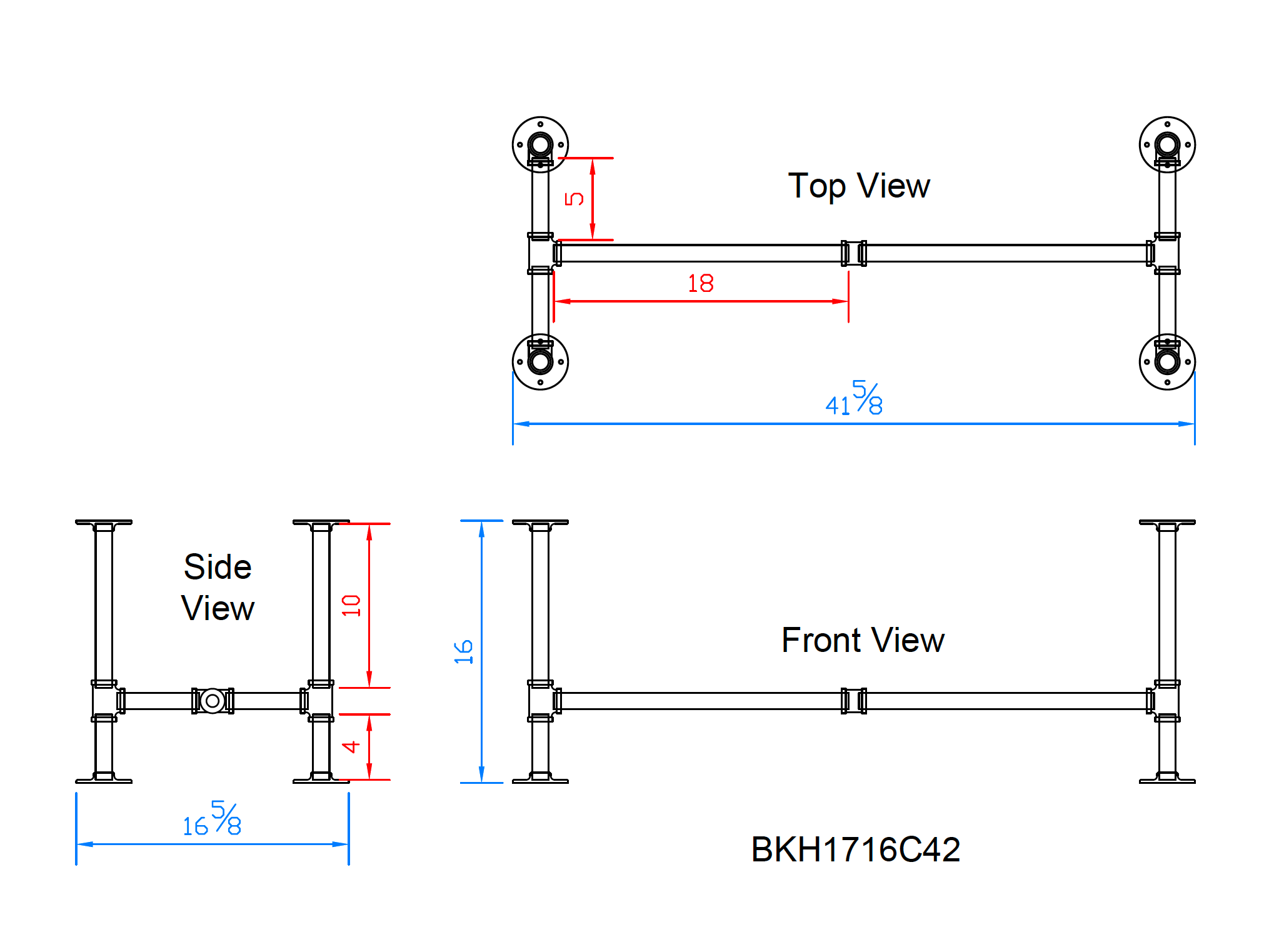

| Dimensions | 16–41 inches tall/wide (modular), horizontal crossbars 14–22 inches |

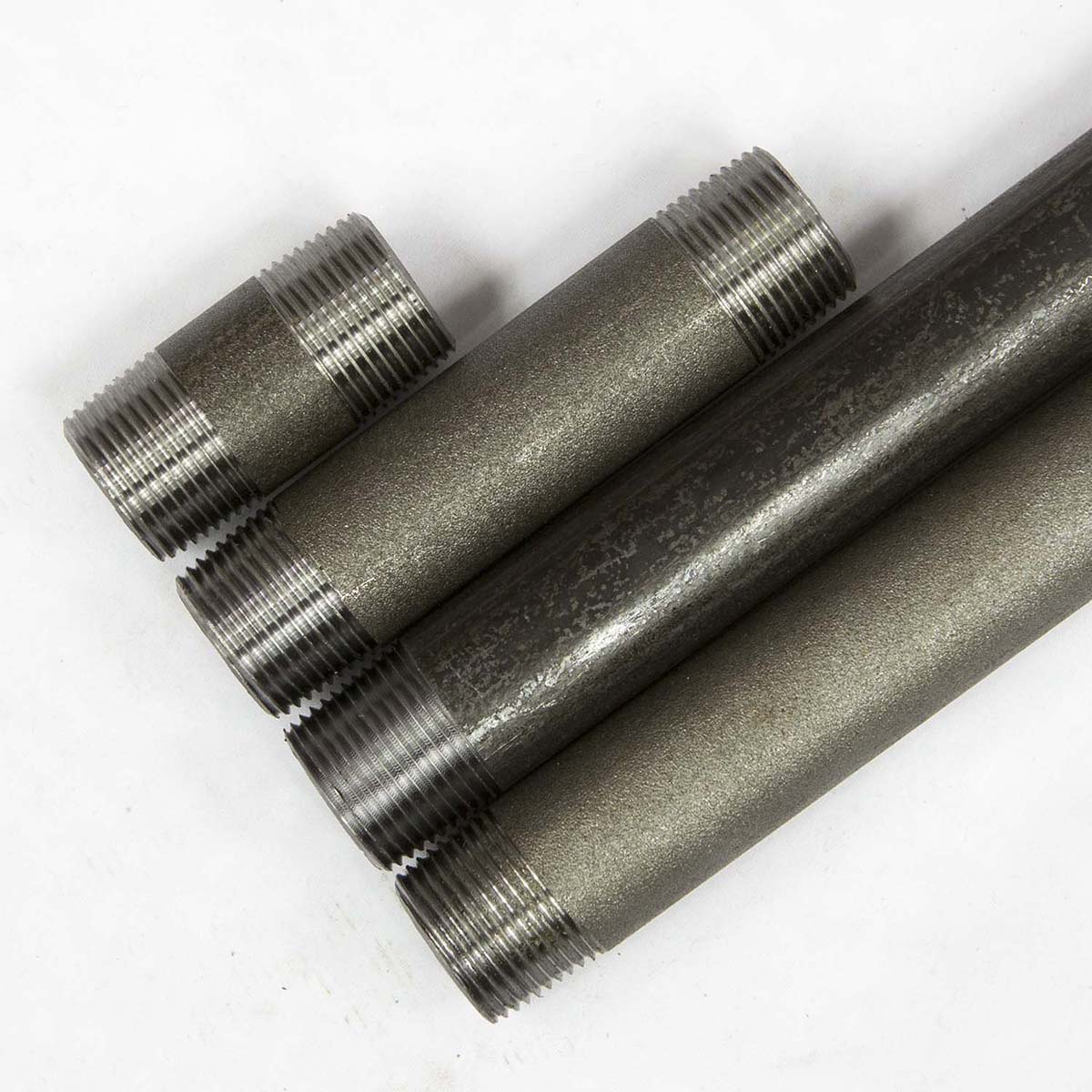

| Material | 3/4″ NPT Black Iron Pipe Fittings & Steel Nipples (1″ Outside Diameter) |
| Finish | Raw Steel with Machinery Oil (Requires Cleaning/Painting) |
| Assembly | Supplied as KIT – Assembly Required |
| Weight Capacity | 500 lbs |
| Screws | Not Included (Suggest #8 Flat Head Wood Screws) |
Perfect For
This modular pipe rack system is perfect for small to moderate storage needs, equipment support, or organizational tasks in industrial, workshop, or home settings.
